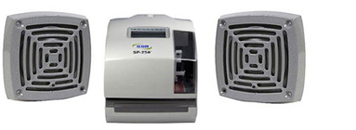

Synchronized Buzzer System - Clock, scheduled bell timer, and two buzzers

Icon SP-250

• Automatically updates for Daylight Savings
• Resets after power failures.
• Stamps date, time and messages on any document or form
• Accommodates any type of time card or document with automated
  and manual print capabilities
• Features six language options: English, French, Spanish, Italian, and others.
• Includes easy-to-change cartridge ribbon
• The Icon SP250 can ring up to 16 different times a day - comes with a small internal ringer, or connect it to a bell or horn system.

What it does:

• Tracks standard time - prints it on the card in minutes or 100th's
• Automatically adjusts for Daylight Saving Time - user selectable setting
• Bell relay capability
• Signals beginning and end of shifts with two 4" 110VAC, 102dB buzzers

Display:

• Features clear, illuminated window to ensure proper employee
  time card alignment
• Offers quartz accuracy with large, easy-to-read LCD display
• Indicates type of minutes: 1/60, 1/100, 1/20 or 1/10

Modern Design:

• Mounts to wall or table
• Includes Lithium battery for accurate timekeeping
  even when power is out!
• Hides (password protected) settings panel for ultimate security
• Withstands high-volume use or harsh environments

What's In The Box:

• One Icon SP250 electronic date and time punch clock with signal kit (factory installed) - One Year Guarantee, lifetime technical support.

• One custom external power supply
    -- the SP250 allows for only 30VDC for the buzzers.
  You need a custom power supply or it will not work.  We build this for you.
• Two Edwards 120VAC horns.
  102dB adjustable industrial grade steel case horns.
• 25' bell wire
• Note:  Run up to 250' with 16 gauge wire, 500' with 14 guage wire

• Mounting hardware

How to set up the buzzer schedule

Press the SELECT button until the diamond  symbol is under the Time Table Program on the setting panel located under the punch clock cover.

Press Set to enter your selection for day of week, or work week, based on this table:
     Day of Week
1   Monday only
2   Tuesday only
3   Wednesday only
4   Thursday only
5   Friday only
6   Saturday only
7   Sunday only

8     Monday through Friday
9     Monday through Saturday
10   Every Day

Press SET again to program the signaling scheduling dates.
Next, use the + or - buttons to choose the Action for the dates set above.
Choose option 3 to turn on the external signal

Once programming is complete, connect the power supply to the back of the clock with the wires marked CLOCK.
